DMX RGBCW 5 Channel DMX512 RGBWW Decoder

PN: IL-DMXRGBCW

Product Description

    This DMX512 decoder adopts the advanced micro control unit, It can receive the DMX-512 standard digital control signal which is internationally widely used. It changes the signal into PWM control signal to actuate the LED lamp. It can also connect the DMX digital console to change the light or each dynamic effect. In addition, when the decoder is not connected with the DMX console, it can be used as a synchronous controller. That is to say you can Synchronously control number of decoders and LED lights.

Technical Parameters

  ● Working temperature: -20~60 ℃

  ● Supply voltage: DC12~24V

 ● Output:5 channels

● External dimension: L148×W66×H41mm

● Packing size: L170×W73×H45mm

● Net weight: 320g

● Gross weight: 340g

● Static power consumption: <1W

● Output current: each channel max 10A

● Output power: 12V:<600W,  24V:<1200W

●DMX512standard：DMX512/1990

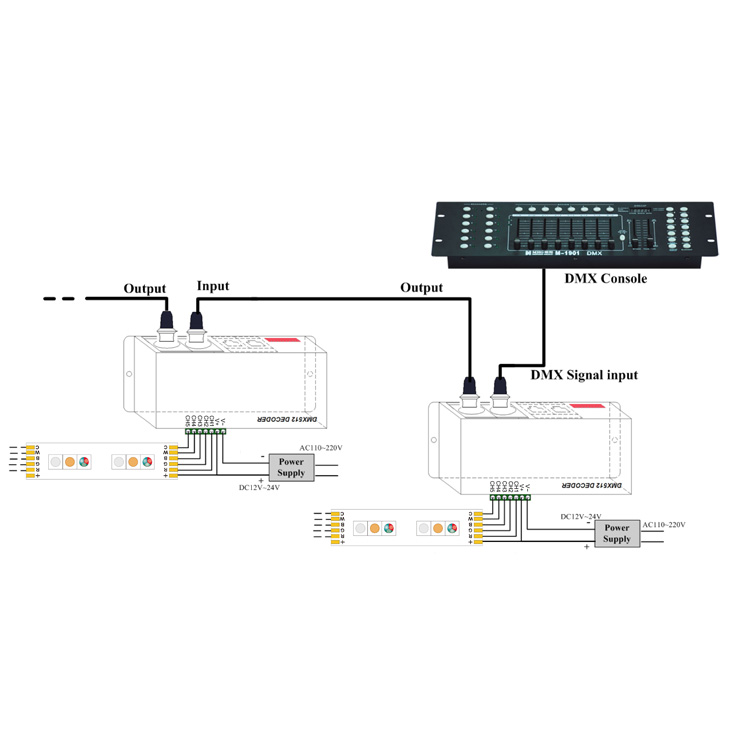

Wire diagram:
